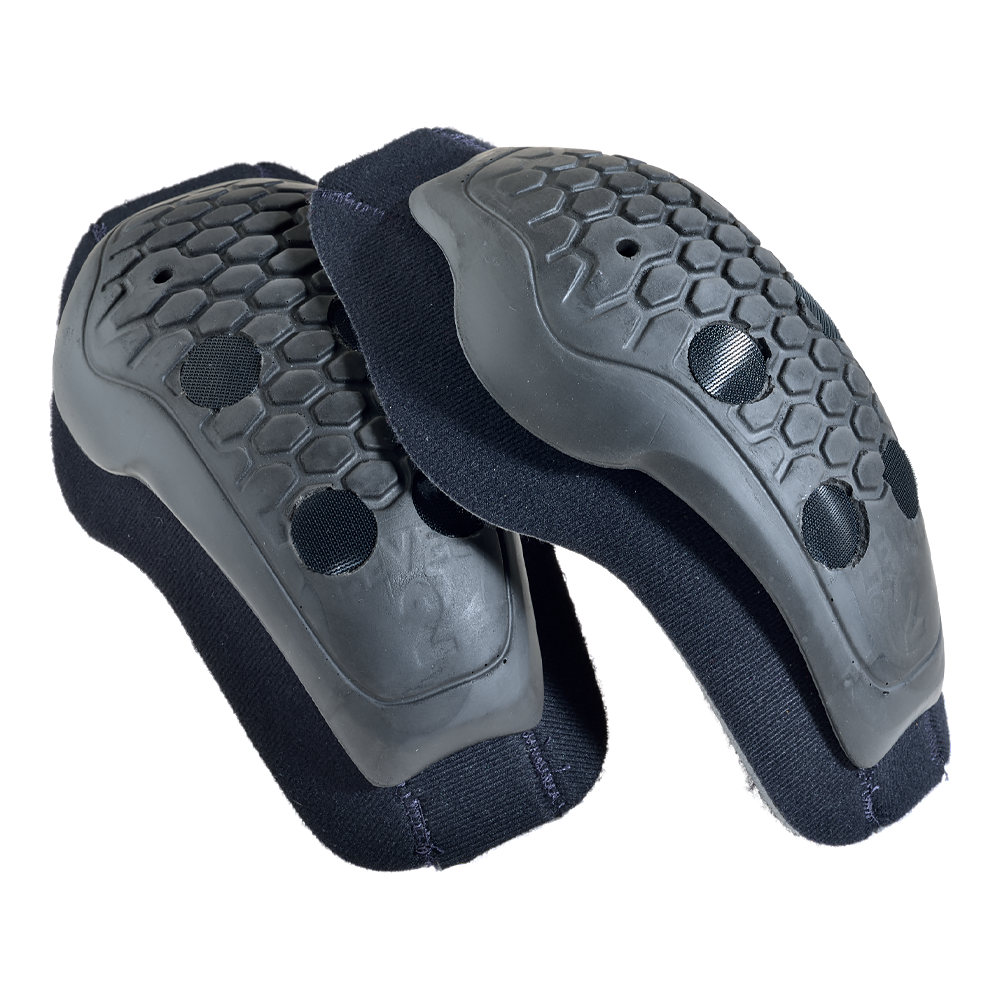

GP2-CE DC ARMOR ELBOWS

Model GP22 NONE

Material Color Black laminated foam

GP CE Level 2 elbow armor
Direct-Connect molded armor + pad sold in pairs
Closed cell .25in foam pad

HAND MADE IN U.S.A. OF DOMESTIC AND/OR IMPORTED MATERIALS

$79.00

Size

Material Color

Quantity

WARNING:.. This product can expose you to chemicalssubstances and materialsknown to the State of California to cause cancer and birth defects or otherreproductive harm.....ADVERTENCIA: Este producto puede exponerlo a productos quimicossubstanciasy materiales que el estado de California reconoce como causantes de cancer ydefectos de nacimiento u otros danos reproductivos.....For more information: www.P65Warnings.ca.gov
Vansons Motorcycle Armor Disclaimer.... Motorcycle Sports are inherentlydangerous and involve the risk of serious injury or death. Riders usingthese products ride at their own risk with full knowledge of the hazardsand risks associated with their activities. Armor cannot offer completeprotection from injury or death to riders. Motorcycle Armor cannot protectareas of the body that are not covered and offer no protection againstinjuries involving forces other than impact.CAUTION: Body Armor Protectors (Vanson GP F.A.S. Armor and CE approvedArmor) must fit properly and be securely fastened. Armor components that aredamaged should be destroyed and replaced.

GP CE Level2 Elbow Armor

Direct Connect

Vanson GP Armor is built as a system of pads and CE Level 2 armor shapes. We start with quarter inch closed cell foam that has been laminated to Velcro compatible tricot on both sides. This is cut to shape using our water jet, with opposing concave curves so that when sewn together the foam assumes the finished shape of the armor piece. The stitching of the foam shapes is done with a specially adjusted zig-zag stitch so as not to either compress the foam in the seam area or to have a thick, bulky, and uncomfortable seam.

Super adhesive is used to glue the velcro shapes to both the inner and outer surfaces of the CE L2 armor shapes. This allows the elbow armor to be adjusted to the foam pad for comfort. And it allows the armor/pad assembly to be attached to the garment shell in the best position for protection and comfort. We call this method of attachment Direct-Connect, as the CE armor is Direct-Connect to the pad, and the pad is in turn a Direct-Connect to the garment shell.

The concept of this system is to both disperse and absorb the force of repeated impacts while providing the best protection. In order to achieve this, it is important that the armor remains in the proper position relative to the body and does not shift even during a crash. To best achieve this the foam pad becomes an acute shape cradling the armor inside the curve and holding the CE armor snugly against the riders' body.

GP CE ARMOR - ELBOW - DIRECT-CONNECT - Level 2 Armor + foam pad
Attachment is via velcro of armor shape to inside curve of foam pad
Small 11.40 inches long x 7.66 inches wide
Large 11.90 inches long x 8.16 inches wide

Laminated black closed cell foam and solid CE Level 2
armor matched together with velcro shapes glued to the
armor. Laminated foam is .25 thick with velcro-compatible
tricot so as to allow for complete adjustability of the
armor and pad to each other and then to the garment shell
